Organux VSTi

Classic, Vintage and Modern Virtual Organs


Overview

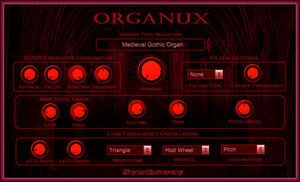

Organux is a virtual organ VST plug-in designed for creating a wide range of classic, vintage and modern organ sounds.ShamiKoto Virtual Koto and Shamisen for macOS: Audio Units and VST for macOS ↓ KONTAKT Sample Library (.nki) ↓ Logic EXS24 Sample Library ↓










Features

  • Rotary switch selector with 23 predefined types of organ sounds:

Ø 01  Default (Organux)

Ø 02  Ethereal Organ

Ø 03  Farfisa Organ

Ø 04  Rock Organ

Ø 05  Neu Orgelpfeite

Ø 06  Chuch Organ

Ø 07  Organicus

Ø 08  Pipe Organ

Ø 09  Organum

Ø 10  Chorus Organ

Ø 11  Fast B3 Organ

Ø 12  Slow B3 Organ

Ø 13  Percussive Organ

Ø 14  Cathedral Organ

Ø 15  Gothic Organ

Ø 16  Blues Organ

Ø 17  Electronic Organ 1

Ø 18  Electronic Organ 2

Ø 19  Detuned Organ

Ø 20  Baroque Pipe Organ

Ø 21  Reed Organ (aka Parlor, Cabinet, Cottage or Pump Organ)

Ø 22  Oberheim OB3 Organ

Ø 23  Synth Organ

  • Hybrid method that combines sampling and synthesis techniques.

  • LFO (Low Frequency Oscillator) with modulation depth, frequency, offset, waveforms (sine-triangle-square) add expressive effects such as "Tremolo" by using the simple GUI commands, or also can be controlled by the position of a ball by clicking-and-dragging in an X-Y axis. The panning slider controls the output effect distribution between left and right speaker.

  • Multiple-Mode Filter that includes LP (Low pass), BP (Band pass), HP (High pass), notch, peak, low pass and high pass shelving filter with adjustable cutoff and bandwidth. The values are automatically computed when you select any of the filter types.

  • ADSR envelope generator with Attack, Sustain, Decay and Release parameters and several modulation targets.

  • Portamento/Glide control: A gliding effect that allows a sound to change pitch at a gradual rate, rather than abruptly, when a new key is pressed or MIDI note sent.

  • Reverb effect built-in: Customizable with user controls for: size room, width room, damping factor & mixer.

  • Delay effect built-in: Creates a delay (echo) effect on audio signals controlled by amount of feedback and modulation of delay time.

  • On-screen MIDI keyboard (68 Keys) that can be played with the mouse, or keyboard (Q is Middle-C, Z two Octaves lower) The 'T' on the left of the keyboard sets Toggle Mode where each key stays held until you click it a second time.

  • MIDI Channel selector : 1 to 16 channels.

  • FULL MIDI Automation: Complete MIDI Continuous Controller. You can use this to automate parameter changes from a sequencer, or to control your synthesizers from an external MIDI control surface.

Windows Operating System: Native dll file for Windows® XP, Windows® Vista, Windows® 7, Windows® 8 / x86 (32 bit). For x64 (64 bit) test the demo plugin with your host internal bit bridge as in Cubase (VST Bridge), FL Studio (Bridged mode), Cakewalk Sonar, X2, X3 (BitBridge) or via external jBridge application for Ableton Live, PreSonus Studio One, etc. - Apple macOS: See options available for Macintosh users in Universal Binary and Sample Libraries for Mac (Audio Unit, VST for Mac, NI Kontakt NKI Files, Apple Logic EXS24 MkII Sample Library) Linux Operating System: with the following requirements (Special Thanks to Paul Davis).


:: MIDI Implementation Chart for ORGANUX:

:= FULL MIDI Automation =: Complete MIDI Continuous Controller (Control of all parameters for use with external hardware control). The following MIDI CC messages are recognized and affect the described parameters:

MIDI CC #     -       Controller Name

CC# 00 - ORGAN ROTARY SELECTOR

CC# 01 - LFO DEPTH (Modulation Wheel)
CC# 03 - LFO FREQ.
CC# 09 - LFO OFFSET
CC# 10 - PANNING EFFECT
CC# 14 - WAVEFORM

CC# 05 - GLIDE - Portamento Time -
CC# 07 - MASTER VOLUME

CC# 20 - CUTOFF - MULTI-MODE FILTER
CC# 21 - BANDWIDTH - MULTI-MODE FILTER
CC# 22 - GAIN for EQ Peak, High/Low Shelf - MULTI-MODE FILTER
CC# 23 - FILTER TYPE - MULTI-MODE FILTER

CC# 71 - DECAY - ENVELOPE GENERATOR
CC# 72 - RELEASE - ENVELOPE GENERATOR
CC# 73 - ATTACK - ENVELOPE GENERATOR
CC# 74 - SUSTAIN - ENVELOPE GENERATOR

CC# 88 - REVERB SIZE ROOM
CC# 89 - REVERB WIDTH ROOM
CC# 90 - REVERB DAMPING FACTOR ROOM
CC# 91 - REVERB MIX LEVEL

CC# 102 - DELAY MODULATION
CC# 103 - DELAY FEEDBACK








Syntheway at KVR Audio Plugin Resources

KVR Audio Plugin Resources

Organux v1.1 update: Changes -> - Added a Reed Organ and an Oberheim OB3 Organ.- GUI totally redesigned. - On-screen MIDI keyboard has been resized to 68 Keys.- Minor modifications have been made to the default settings.- Added to MIDI chart list the Continuous Controller CC# 00 for Organ Rotary Selector.- Added link to website in company logo and access and help/info CHM file by clicking on "S" icon. -> Fixed bugs:- Electronic Organ #2 was resampled due to an issue in one of their octaves. - Small bug fixes.

System Requirements

      Before you install VST Instruments & Effects, please make sure your computer fulfills the following requirements:

  • Windows Operating System: Native dll file for Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 / x86 architecture (32-bit platform). For x64 (64-bit platform) test the demo plug-in with your host internal bit bridge as in Cubase up to v8.5 (VST Bridge), FL Studio (Bridged mode), Cakewalk SONAR (BitBridge), Cockos REAPER (Bridging), Acoustica Mixcraft (full 32/64-bit compatibility) or via external jBridge application for Ableton Live, PreSonus Studio One, Cubase 9, etc.

  • Apple macOS: See options available for Macintosh users in Universal Binary and more.

  • Linux Operating System: with the following requirements (Special Thanks to Paul Davis) or in MusE from v2.1 with Native VST support.

  • 500 MHz Processor (Pentium®, Celeron® AMD® or equivalent) minimum.

  • RAM: 128 MB or higher recommended.

  • VST compatible host / Digital Audio Workstation DAW/ MIDI Sequencer: This VST software can be "plugged in" to any host application that supports VST Technology like: Image-Line FL Studio, Steinberg Cubase Pro, Artist and Elements, Cakewalk by BandLab, Ableton Live, Cockos REAPER, PreSonus Studio One, Acoustica Mixcraft, MAGIX Acid Pro, MakeMusic Finale, Avid Sibelius, Mackie Tracktion, AudioMulch, Steinberg Nuendo, Magix Samplitude, Magix Music Maker, Cantabile (Lite, Solo, Performer), n-Track Studio, VSTHost, SAVIHost, and much more ...

  • MIDI Device: After launching the Digital Audio Workstation or MIDI host application be sure to select the appropriate MIDI device before attempting to play your MIDI controller.

  • An ASIO® soundcard is recommended for low latency real-time play.

  • Please test extensively the demo version of your selected product (s) in your host to make sure there are no misbehaviors before purchasing.

    Windows Operating System: Native dll file for Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 / x86 architecture (32-bit platform). For x64 (64-bit platform) test the demo plug-in with your host internal bit bridge as in Cubase (VST Bridge), FL Studio (Bridged mode), Cakewalk SONAR (BitBridge), Cockos REAPER (Bridging) or via external jBridge application for Ableton Live, PreSonus Studio One, etc.

    Apple macOS: See native options available for Macintosh users. Syntheway Virtual Musical Instruments AU Audio Units (.component), VST (.vst extension) Sample Libraries for Apple Mac OS X v10.6 "Snow Leopard", Mac OS X v10.7 "Lion", Mac OS X v10.8 "Mountain Lion", OS X v10.9 "Mavericks", OS X v10.10 "Yosemite", OS X v10.11 "El Capitan", macOS v10.12 "Sierra", macOS v10.13 "High Sierra".



  Installing and Uninstalling VST Plug-in

    To install VST plug-in, follow these steps:

  • The dll file must be in a directory where the VST host is looking for VST plug-ins.

  • Unzip the file.

  • Put the Organux demo.dll file into VST Plug-ins Folder of your host application.


    To uninstall simply remove the
Organux demo.dll file of your VST Plug-ins folder.



Version History

This section outlines revisions between Organux releases. The most recent changes are at the top.


  • v1.2:
    Changes:
    - Added “Synth Organ” sampled instrument.
    - Updated built-in sound bank to 55 presets.
    - Minor changes in graphical user interface.
    Fixed bugs:
    - Small bugs fixed.



  • v1.1:
    Changes:
    - Added a Reed Organ and an Oberheim OB3 Organ.
    - GUI totally redesigned.
    - On-screen MIDI keyboard has been resized to 68 Keys.
    - Minor modifications have been made to the default settings.
    - Added to MIDI chart list the Continuous Controller CC# 00 for Organ Rotary Selector.
    - Added link to website in company logo and access and help/info CHM file by clicking on "S" icon.
    - Electronic Organ #2 was resampled due to an issue in one of their octaves.
    - Small bug fixes.

  • v1.0: First public release.



Plug-in Credits

Concept and Programming by Daniel Laiseca



Evaluation & Registration

The code for the licensed and evaluation versions of this software are identical. With the Demo Version you can do anything you can do with the full version, also some presets are included to demonstrate the instruments capabilities.

The demo restrictions are:

  • The demo generates a short beep noise in all output channels every 10 seconds

  • "Reed Organ" and a "Oberheim OB3 Organ" presets aren't available.

The Registered Version does not have nagging sounds, contains complete sound bank and their use is unlimited.

The program is a SHAREWARE. You are hereby licensed to use this software for evaluation purposes without charge but if you use this software after the evaluation period, a registration fee is required.  Note that by registering the software, you enable us to improve it and design new features and you automatically support the development for upcoming software updates.

The full version is available to purchase, as downloadable software, the price is US$32, and you can download the full version as soon as your payment is received (normally the same day)

Make payments with PayPal - it's fast, free and secure!





VST Plug-in Interface Technology by Steinberg Media Technologies GmbH. Use this Syntheway VST plugin with your favourite MIDI Sequencer host like: FL Studio, Ableton Live, Cakewalk Sonar, Steinberg Cubase, Nuendo, PreSounus Studio One, REAPER, Mixcraft, MAGIX Samplitude, Sequoia, Energy XT, ACID Pro, Orion, VSTHost, SAVIHost, n-Track Studio, Cantabile, Adobe Audition
